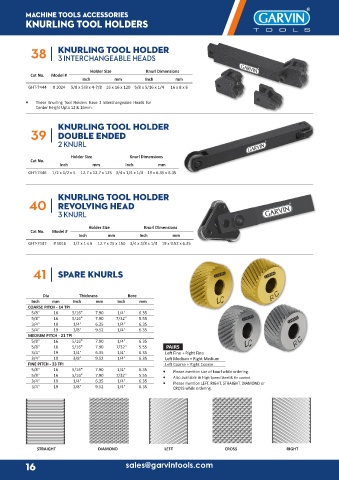

machine TOOLS accessories
KNURLING TOOL HOLDERS

38 | KNURLING TOOL HOLDER

3 INTERCHANGEABLE HEADS

Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7444 # 1024 5/8 x 5/8 x 4-7/8 16 x 16 x 120 5/8 x 5/16 x 1/4 16 x 8 x 6

• These Knurling Tool Holders Have 3 Interchangeable Heads for
Center Height Upto 12 & 16mm.

39 | KNURLING TOOL HOLDER
DOUBLE ENDED

2 KNURL

Holder Size Knurl Dimensions
Cat No.
Inch mm Inch mm
GHT-7446 1/2 x 1/2 x 5 12.7 x 12.7 x 125 3/4 x 1/4 x 1/4 19 x 6.35 x 6.35

40 | KNURLING TOOL HOLDER
REVOLVING HEAD
3 KNURL

Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7447 # 1016 1/2 x 1 x 6 12.7 x 25 x 150 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35

41 | SPARE KNURLS

Dia Thickness Bore
Inch mm Inch mm Inch mm
COARSE PITCH - 14 TPI
5/8" 16 5/16" 7.90 1/4" 6.35
5/8" 16 5/16" 7.90 7/32" 5.55
3/4" 19 1/4" 6.35 1/4" 6.35
3/4" 19 3/8" 9.52 1/4" 6.35
MEDIUM PITCH - 21 TPI
5/8" 16 5/16" 7.90 1/4" 6.35
5/8" 16 5/16" 7.90 7/32" 5.55 PAIRS
3/4" 19 1/4" 6.35 1/4" 6.35 Left Fine + Right Fine
3/4" 19 3/8" 9.52 1/4" 6.35 Left Medium + Right Medium
FINE PITCH - 33 TPI Left Coarse + Right Coarse
5/8" 16 5/16" 7.90 1/4" 6.35 • Please mention size of knurl while ordering.
5/8" 16 5/16" 7.90 7/32" 5.55 • Also available in High Speed Steel & tin coated.
3/4" 19 1/4" 6.35 1/4" 6.35 • Please mention LEFT, RIGHT, STRAIGHT, DIAMOND or
3/4" 19 3/8" 9.52 1/4" 6.35 CROSS while ordering.

STRAIGHT DIAMOND LEFT CROSS RIGHT
