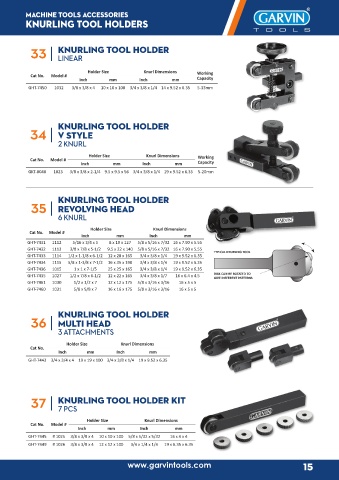

KNURLING TOOL HOLDERS

33 | KNURLING TOOL HOLDER

LINEAR

Holder Size Knurl Dimensions Working
Cat No. Model #
Inch mm Inch mm Capacity
GHT-7450 1032 3/8 x 3/8 x 4 10 x 10 x 100 3/4 x 3/8 x 1/4 14 x 9.52 x 6.35 5-33mm

34 | KNURLING TOOL HOLDER
V STYLE
2 KNURL

Holder Size Knurl Dimensions Working
Cat No. Model #
Inch mm Inch mm Capacity
GKT-0048 1023 3/8 x 3/8 x 2-1/4 9.5 x 9.5 x 56 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35 5-20mm

35 | KNURLING TOOL HOLDER
REVOLVING HEAD
6 KNURL

Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7431 1112 5/16 x 3/4 x 5 8 x 19 x 127 5/8 x 5/16 x 7/32 16 x 7.90 x 5.55
GHT-7432 1113 3/8 x 7/8 x 5-1/2 9.5 x 22 x 140 5/8 x 5/16 x 7/32 16 x 7.90 x 5.55 TYPICAL KNURLING TOOL
GHT-7433 1114 1/2 x 1-1/8 x 6-1/2 12 x 28 x 165 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35
GHT-7434 1115 5/8 x 1-3/8 x 7-1/2 16 x 35 x 190 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35
GHT-7436 1015 1 x 1 x 7-1/5 25 x 25 x 165 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35
GHT-7435 1027 1/2 x 7/8 x 6-1/2 12 x 22 x 165 3/4 x 3/8 x 1/7 16 x 6.4 x 4.5 DISK CAN BE ROTATED TO
GIVE DIFFERENT PATTERNS
GHT-7461 1030 1/2 x 1/2 x 7 12 x 12 x 175 5/8 x 3/16 x 3/16 16 x 5 x 5
GHT-7460 1031 5/8 x 5/8 x 7 16 x 16 x 175 5/8 x 3/16 x 3/16 16 x 5 x 5

36 | KNURLING TOOL HOLDER
MULTI HEAD
3 ATTACHMENTS

Holder Size Knurl Dimensions
Cat No.
Inch mm Inch mm
GHT-7443 3/4 x 3/4 x 4 19 x 19 x 100 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35

37 | KNURLING TOOL HOLDER KIT

7 PCS
Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7445 # 1025 3/8 x 3/8 x 4 10 x 10 x 100 5/8 x 5/32 x 5/32 16 x 4 x 4
GHT-7449 # 1026 3/8 x 3/8 x 4 12 x 12 x 100 3/4 x 1/4 x 1/4 19 x 6.35 x 6.35
