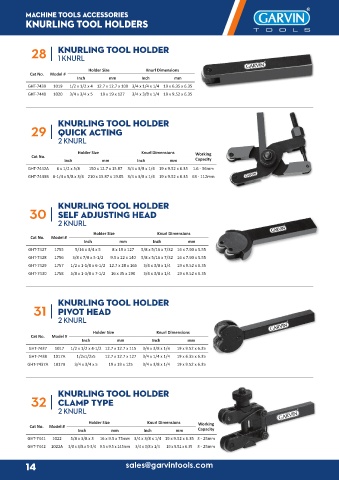

Page 16 - Garvin-Machine

machine TOOLS accessories
KNURLING TOOL HOLDERS

28 | KNURLING TOOL HOLDER

1 KNURL

Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7439 1019 1/2 x 1/2 x 4 12.7 x 12.7 x 100 3/4 x 1/4 x 1/4 19 x 6.35 x 6.35
GHT-7440 1020 3/4 x 3/4 x 5 19 x 19 x 127 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35

29 | KNURLING TOOL HOLDER
QUICK ACTING
2 KNURL

Holder Size Knurl Dimensions Working
Cat No.
Inch mm Inch mm Capacity
GHT-7442A 6 x 1/2 x 5/8 150 x 12.7 x 15.87 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35 1.6 - 56mm
GHT-7443B 8-1/4 x 5/8 x 3/4 210 x 15.87 x 19.05 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35 63 - 112mm

30 | KNURLING TOOL HOLDER
SELF ADJUSTING HEAD
2 KNURL
Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7427 1755 5/16 x 3/4 x 5 8 x 19 x 127 5/8 x 5/16 x 7/32 16 x 7.90 x 5.55
GHT-7428 1756 3/8 x 7/8 x 5-1/2 9.5 x 22 x 140 5/8 x 5/16 x 7/32 16 x 7.90 x 5.55
GHT-7429 1757 1/2 x 1-1/8 x 6-1/2 12.7 x 28 x 165 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35
GHT-7430 1758 5/8 x 1-3/8 x 7-1/2 16 x 35 x 190 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35

31 | KNURLING TOOL HOLDER
PIVOT HEAD
2 KNURL

Holder Size Knurl Dimensions
Cat No. Model #
Inch mm Inch mm
GHT-7437 1017 1/2 x 1/2 x 4-1/2 12.7 x 12.7 x 115 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35
GHT-7438 1017A 1/2x1/2x5 12.7 x 12.7 x 127 3/4 x 1/4 x 1/4 19 x 6.35 x 6.35
GHT-7437A 1017B 3/4 x 3/4 x 5 19 x 19 x 125 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35

32 | KNURLING TOOL HOLDER
CLAMP TYPE
2 KNURL

Holder Size Knurl Dimensions Working
Cat No. Model #
Inch mm Inch mm Capacity
GHT-7441 1022 5/8 x 3/8 x 3 16 x 9.5 x 75mm 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35 3 - 25mm
GHT-7442 1022A 3/8 x 3/8 x 5-3/4 9.5 x 9.5 x 145mm 3/4 x 3/8 x 1/4 19 x 9.52 x 6.35 3 - 25mm
