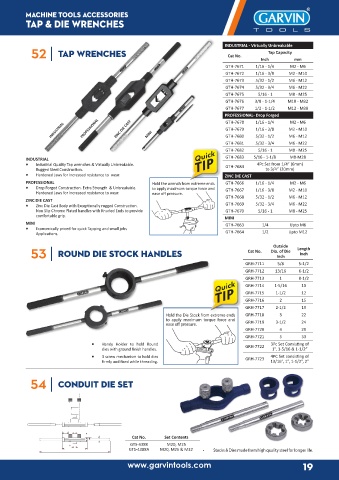

Page 21 - Garvin-Machine

machine TOOLS accessories
tap & die wrenches

52 | TAP WRENCHES INDUSTRIAL - Virtually Unbreakable mm
Tap Capacity
Cat No.
Inch
GTH-7671 1/16 - 1/4 M2 - M6
GTH-7672 1/16 - 3/8 M2 - M10
GTH-7673 5/32 - 1/2 M6 - M12
GTH-7674 5/32 - 3/4 M6 - M22
GTH-7675 5/16 - 1 M8 - M25
GTH-7676 3/8 - 1-1/4 M10 - M32
GTH-7677 1/2 - 1-1/2 M12 - M38
PROFESSIONAL- Drop Forged M2 - M6
1/16 - 1/4
GTH-7678
INDUSTRIAL PROFESSIONAL ZINC DIE CAST MINI GTH-7679 1/16 - 3/8 M2 - M10
M6 - M12
GTH-7680
5/32 - 1/2
GTH-7681 5/32 - 3/4 M6 - M22
GTH-7682 5/16 - 1 M8 - M25
INDUSTRIAL GTH-7683 5/16 - 1-1/8 M8-M28
• Industrial Quality Tap wrenches & Virtually Unbreakable. GTH-7684 4Pc Set from 1/4” (6mm)
Rugged Steel Construction. to 3/4” (20mm)
• Hardened Jaws for Increased resistance to wear. ZINC DIE CAST
PROFESSIONAL Hold the wrench from extreme ends GTH-7666 1/16 - 1/4 M2 - M6
• Drop Forged Construction. Extra Strength & Unbreakable. to apply maximum torque force and
Hardened Jaws for Increased resistance to wear. ease off pressure. GTH-7667 1/16 - 3/8 M2 - M10
ZINC DIE CAST GTH-7668 5/32 - 1/2 M6 - M12
• Zinc Die Cast Body with Exceptionally rugged Construction. GTH-7669 5/32 - 3/4 M6 - M22
Non Slip Chrome Plated handles with Knurled Ends to provide GTH-7670 5/16 - 1 M8 - M25
comfortable grip. MINI
MINI GTH-7663 1/4 Upto M6
• Economically priced for quick Tapping and small jobs
Applications. GTH-7664 1/2 Upto M12

Outside
53 | ROUND DIE STOCK HANDLES Cat No. Dia. of Die Length
Inch
Inch
GRH-7711 5/8 5-1/2
GRH-7712 13/16 6-1/2
GRH-7713 1 8-1/2
GRH-7714 1-5/16 10
GRH-7715 1-1/2 12
GRH-7716 2 15
GRH-7717 2-1/2 19
Hold the Die Stock from extreme ends GRH-7718 3 22
to apply maximum torque force and GRH-7719 3-1/2 24
ease off pressure.
GRH-7720 4 29
GRH-7721 5 33
• Handy Holder to hold Round 3Pc Set Consisting of
dies with ground finish handles. GRH-7722 1”, 1-5/16 & 1-1/2”
• 3 screw mechanism to hold dies 4PC Set consisting of
firmly and fixed while threading. GRH-7723 13/16”, 1”, 1-1/2”, 2”

54 | CONDUIT DIE SET

Cat No. Set Contents
GTS-4388 M20, M25
GTS-4388A M20, M25 & M32 • Stocks & Dies made from high quality steel for longer life.
