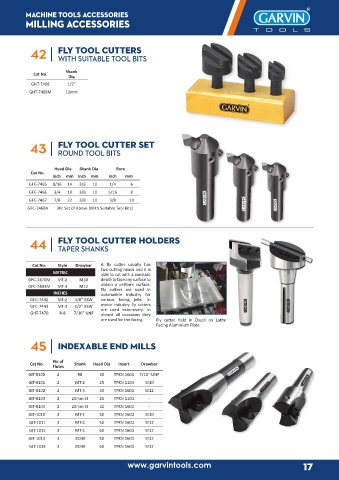

Page 19 - Garvin-Machine

machine TOOLS accessories
Milling accessories

42 | FLY TOOL CUTTERS
WITH SUITABLE TOOL BITS

Cat No. Shank
Dia
GHT-7468 1/2”
GHT-7468M 12mm

43 | FLY TOOL CUTTER SET

ROUND TOOL BITS

Head Dia Shank Dia Bore
Cat No.
Inch mm Inch mm Inch mm
GFC-7465 9/16 14 3/8 10 1/4 6
GFC-7466 3/4 19 3/8 10 5/16 8
GFC-7467 7/8 22 3/8 10 3/8 10
GFC-7468A 3Pc Set of Above (With Suitable Tool Bits)

44 | FLY TOOL CUTTER HOLDERS

TAPER SHANKS

Cat No. Style Drawbar A fly cutter usually has
METRIC two cutting heads and it is
able to cut with a constant
GFC-7470M MT-2 M10 depth to face any surface to
GFC-7441M MT-3 M12 obtain a uniform surface.
Fly cutters are used in
INCHES automobile industry for
GFC-7442 MT-2 3/8” BSW various facing jobs. In
GFC-7443 MT-3 1/2” BSW motor industry fly cutters
are used extensively. In
GHT-7470 R-8 7/16” UNF almost all occasions they
are used for the facing. Fly cutter Held in Chuck on Lathe
Facing Aluminium Plate

45 | INDEXABLE END MILLS

Cat No. No of Shank Head Dia Insert Drawbar
Flutes
GIT-0100 2 R8 30 TPKN 1603 7/16” UNF
GIT-0101 2 MT-2 25 TPKN 1103 M10
GIT-0102 2 MT-3 30 TPKN 1603 M12
GIT-0103 2 20mm St 25 TPKN 1103 -
GIT-0104 2 20mm St 32 TPKN 1603 -
GIT-1010 3 MT-2 50 TPKN 1603 M10
GIT-1011 3 MT-3 50 TPKN 1603 M12
GIT-1012 3 MT-3 60 TPKN 1603 M12
GIT-1013 3 ISO30 50 TPKN 1603 M12
GIT-1014 3 ISO30 60 TPKN 1603 M12
