machine TOOLS accessories

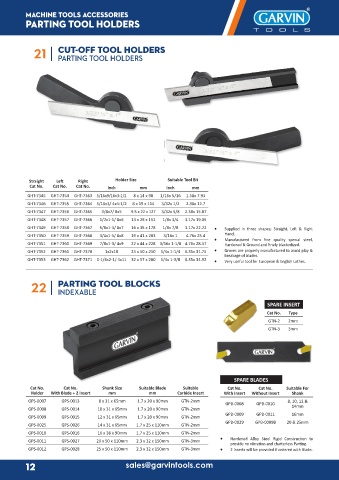

PARTING TOOL HOLDERS

21 | CUT-OFF TOOL HOLDERS

PARTING TOOL HOLDERS

Straight Left Right Holder Size Suitable Tool Bit
Cat No. Cat No. Cat No. Inch mm Inch mm
GHT-7345 GHT-7354 GHT-7363 5/16x9/16x3-1/2 8 x 14 x 90 1/16x 5/16 1.58x 7.93
GHT-7346 GHT-7355 GHT-7364 5/16x3/ 4x4-1/2 8 x 19 x 114 3/32x 1/2 2.38x 12.7
GHT-7347 GHT-7356 GHT-7365 3/8x7/ 8x5 9.5 x 22 x 127 3/32x 5/8 2.38x 15.87
GHT-7348 GHT-7357 GHT-7366 1/2x1-1/ 8x6 13 x 28 x 152 1/8x 3/4 3.17x 19.05
GHT-7349 GHT-7358 GHT-7367 5/8x1-3/ 8x7 16 x 35 x 178 1/8x 7/8 3.17x 22.22 • Supplied in three shapes; Straight, Left & Right
GHT-7350 GHT-7359 GHT-7368 3/4x1-5/ 8x8 19 x 41 x 203 3/16x 1 4.76x 25.4 • Hand.
GHT-7351 GHT-7360 GHT-7369 7/8x1-3/ 4x9 22 x 44 x 228 3/16x 1-1/8 4.76x 28.57 Manufactured from fine quality special steel,
Hardened & Ground and finely blackodized.
GHT-7352 GHT-7361 GHT-7370 1x2x10 25 x 50 x 250 1/4x 1-1/4 6.35x 31.75 • Groves are properly manufactured to avoid play &
breakage of blades.
GHT-7353 GHT-7362 GHT-7371 1-1/4x2-1/ 4x11 32 x 57 x 280 1/4x 1-3/8 6.35x 34.92 • Very useful tool for European & English Lathes.

22 | PARTING TOOL BLOCKS
INDEXABLE

SPARE INSERT
Cat No. Type
GTN-2 2mm
GTN-3 3mm

SPARE BLADES
Cat No. Cat No. Shank Size Suitable Blade Suitable Cat No. Cat No. Suitable For
Holder With Blade + 2 Insert mm mm Carbide Insert With Insert Without Insert Shank
GPS-0007 GPS-0013 8 x 31 x 65mm 1.7 x 20 x 90mm GTN-2mm GPB-0008 GPB-0010 8, 10, 12 &
GPS-0008 GPS-0014 10 x 31 x 65mm 1.7 x 20 x 90mm GTN-2mm 14mm
GPS-0009 GPS-0015 12 x 31 x 65mm 1.7 x 20 x 90mm GTN-2mm GPB-0009 GPB-0011 16mm
GPS-0025 GPS-0026 14 x 31 x 65mm 1.7 x 25 x 110mm GTN-2mm GPB-0029 GPB-0009B 20 & 25mm
GPS-0010 GPS-0016 16 x 38 x 90mm 1.7 x 25 x 110mm GTN-2mm
GPS-0011 GPS-0027 20 x 50 x 110mm 2.3 x 32 x 150mm GTN-3mm • Hardened Alloy Steel Rigid Construction to
provide no vibration and chatterless Parting.
GPS-0012 GPS-0028 25 x 50 x 110mm 2.3 x 32 x 150mm GTN-3mm • 2 Inserts will be provided if ordered with Blade.
