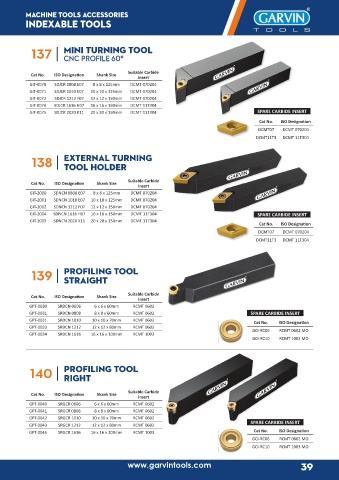

Page 41 - Garvin-Machine

machine TOOLS accessories
indexable tools

137 | MINI TURNING TOOL
CNC PROFILE 60º

Suitable Carbide
Cat No. ISO Designation Shank Size Insert
GIT-0070 SDJCR 0808 E07 8 x 8 x 125mm DCMT 070204
GIT-0071 SDJCR 1010 E07 10 x 10 x 125mm DCMT 070204
GIT-0072 SDJCR 1212 F07 12 x 12 x 150mm DCMT 070204
GIT-0074 SDJCR 1616 H07 16 x 16 x 150mm DCMT 11T304
GIT-0075 SDJCR 2020 K11 20 x 20 x 150mm DCMT 11T304 SPARE CARBIDE INSERT
Cat No. ISO Designation
DCMT07 DCMT 070204
DCMT11T3 DCMT 11T304

138 | EXTERNAL TURNING
TOOL HOLDER

Suitable Carbide
Cat No. ISO Designation Shank Size
Insert
GIT-2000 SDNCN 0808 E07 8 x 8 x 125mm DCMT 070204
GIT-2001 SDNCN 1010 E07 10 x 10 x 125mm DCMT 070204
GIT-2002 SDNCN 1212 F07 12 x 12 x 150mm DCMT 070204
GIT-2004 SDNCN 1616 H07 16 x 16 x 150mm DCMT 11T304 SPARE CARBIDE INSERT
GIT-2005 SDNCN 2020 K11 20 x 20 x 150mm DCMT 11T304
Cat No. ISO Designation
DCMT07 DCMT 070204
DCMT11T3 DCMT 11T304

139 | PROFILING TOOL
STRAIGHT

Cat No. ISO Designation Shank Size Suitable Carbide
Insert
GPT-0030 SRDCN 0606 6 x 6 x 60mm RCMT 0602
GPT-0031 SRDCN 0808 8 x 8 x 60mm RCMT 0602 SPARE CARBIDE INSERT
GPT-0031 SRDCN 1010 10 x 10 x 70mm RCMT 0602 Cat No. ISO Designation
GPT-0033 SRDCN 1212 12 x 12 x 80mm RCMT 0602 GCI-RC06 RCMT 0602 MO
GPT-0034 SRDCN 1616 16 x 16 x 100mm RCMT 1003
GCI-RC10 RCMT 1003 MO

140 | PROFILING TOOL
RIGHT

Suitable Carbide
Cat No. ISO Designation Shank Size
Insert
GPT-0040 SRGCR 0606 6 x 6 x 60mm RCMT 0602
GPT-0041 SRGCR 0808 8 x 8 x 60mm RCMT 0602
GPT-0042 SRGCR 1010 10 x 10 x 70mm RCMT 0602
GPT-0043 SRGCR 1212 12 x 12 x 80mm RCMT 0602 SPARE CARBIDE INSERT
GPT-0045 SRGCR 1616 16 x 16 x 100mm RCMT 1003 Cat No. ISO Designation
GCI-RC06 RCMT 0602 MO
GCI-RC10 RCMT 1003 MO
