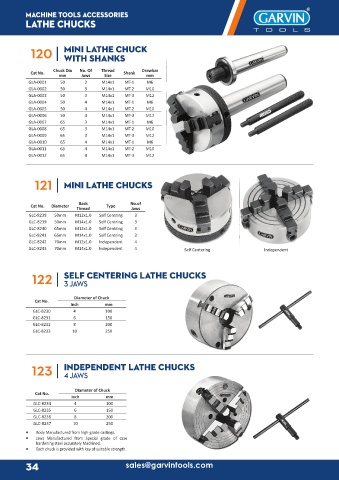

machine TOOLS accessories
lathe chucks

120 | MINI LATHE CHUCK

WITH SHANKS

Cat No. Chuck Dia No. Of Thread Shank Drawbar
mm
mm
Size
Jaws
GLA-0001 50 3 M14x1 MT-1 M6
GLA-0002 50 3 M14x1 MT-2 M10
GLA-0003 50 3 M14x1 MT-3 M12
GLA-0004 50 4 M14x1 MT-1 M6
GLA-0005 50 4 M14x1 MT-2 M10
GLA-0006 50 4 M14x1 MT-3 M12
GLA-0007 65 3 M14x1 MT-1 M6
GLA-0008 65 3 M14x1 MT-2 M10
GLA-0009 65 3 M14x1 MT-3 M12
GLA-0010 65 4 M14x1 MT-1 M6
GLA-0011 65 4 M14x1 MT-2 M10
GLA-0012 65 4 M14x1 MT-3 M12

121 | MINI LATHE CHUCKS

Back
Cat No. Diameter Thread Type No.of
Jaws
GLC-8238 50mm M12x1.0 Self Centring 3
GLC-8239 50mm M14x1.0 Self Centring 3
GLC-8240 65mm M12x1.0 Self Centring 3
GLC-8241 65mm M14x1.0 Self Centring 3
GLC-8242 70mm M12x1.0 Independent 4
GLC-8243 70mm M14x1.0 Independent 4 Self Centering Independent

122 | SELF CENTERING LATHE CHUCKS
3 JAWS

Diameter of Chuck
Cat No.
Inch mm
GLC-8230 4 100
GLC-8231 6 150
GLC-8232 8 200
GLC-8233 10 250

123 | INDEPENDENT LATHE CHUCKS
4 JAWS

Diameter of Chuck
Cat No.
Inch mm
GLC-8234 4 100
GLC-8235 6 150
GLC-8236 8 200
GLC-8237 10 250
• Body Manufactured from high-grade castings.
• Jaws Manufactured from Special grade of case
hardening steel accurately Machined.
• Each chuck is provided with key of suitable strength.
