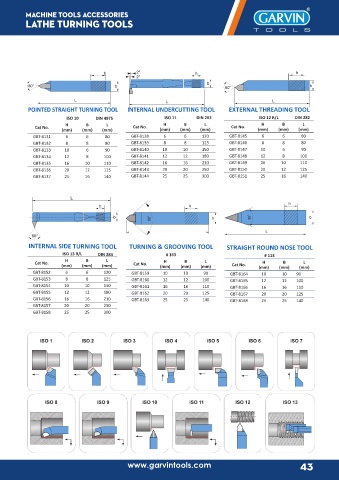

machine TOOLS accessories
LATHE TURNING TOOLS
POINTED STRAIGHT TURNING TOOL INTERNAL UNDERCUTTING TOOL EXTERNAL THREADING TOOL
ISO 10 DIN 4975 ISO 11 DIN 263 ISO 12 R/L DIN 282
H B L H B L H B L
Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm)
GBT-8131 6 6 80 GBT-8138 6 6 120 GBT-8145 6 6 80
GBT-8132 8 8 80 GBT-8139 8 8 125 GBT-8146 8 8 80
GBT-8133 10 6 90 GBT-8140 10 10 150 GBT-8147 10 6 90
GBT-8134 12 8 100 GBT-8141 12 12 180 GBT-8148 12 8 100
GBT-8135 16 10 110 GBT-8142 16 16 210 GBT-8149 16 10 110
GBT-8136 20 12 125 GBT-8143 20 20 250 GBT-8150 20 12 125
GBT-8137 25 16 140 GBT-8144 25 25 300 GBT-8151 25 16 140
INTERNAL SIDE TURNING TOOL TURNING & GROOVING TOOL STRAIGHT ROUND NOSE TOOL
ISO 13 R/L DIN 283 # 163 # 113
H B L H B L
L
B
H
Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm)
GBT-8152 6 6 120 GBT-8159 10 10 90 GBT-8164 10 10 90
GBT-8153 8 8 125 GBT-8160 12 12 100 GBT-8165 12 12 100
GBT-8154 10 10 150 GBT-8161 16 16 110 GBT-8166 16 16 110
GBT-8155 12 12 180 GBT-8162 20 20 125 GBT-8167 20 20 125
GBT-8156 16 16 210 GBT-8163 25 25 140 GBT-8168 25 25 140
GBT-8157 20 20 250
GBT-8158 25 25 300
