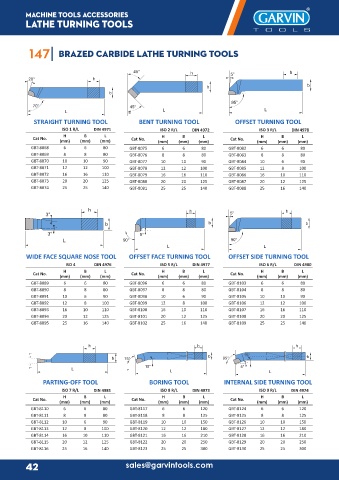

LATHE TURNING TOOLS

147| BRAZED CARBIDE LATHE TURNING TOOLS

STRAIGHT TURNING TOOL BENT TURNING TOOL OFFSET TURNING TOOL
ISO 1 R/L DIN 4971 ISO 2 R/L DIN 4972 ISO 3 R/L DIN 4978
Cat No. H B L Cat No. H B L Cat No. H B L
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
GBT-8068 6 6 80 GBT-8075 6 6 80 GBT-8082 6 6 80
GBT-8069 8 8 80 GBT-8076 8 8 80 GBT-8083 8 8 80
GBT-8070 10 10 90 GBT-8077 10 10 90 GBT-8084 10 6 90
GBT-8071 12 12 100 GBT-8078 12 12 100 GBT-8085 12 8 100
GBT-8072 16 16 110 GBT-8079 16 16 110 GBT-8086 16 10 110
GBT-8073 20 20 125 GBT-8080 20 20 125 GBT-8087 20 12 125
GBT-8074 25 25 140 GBT-8081 25 25 140 GBT-8088 25 16 140

WIDE FACE SQUARE NOSE TOOL OFFSET FACE TURNING TOOL OFFSET SIDE TURNING TOOL
ISO 4 DIN 4976 ISO 5 R/L DIN 4977 ISO 6 R/L DIN 4980
B
H
H
L
H
L
B
L
B
Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm)
GBT-8089 6 6 80 GBT-8096 6 6 80 GBT-8103 6 6 80
GBT-8090 8 8 80 GBT-8097 8 8 80 GBT-8104 8 8 80
GBT-8091 10 6 90 GBT-8098 10 6 90 GBT-8105 10 10 90
GBT-8092 12 8 100 GBT-8099 12 8 100 GBT-8106 12 12 100
GBT-8093 16 10 110 GBT-8100 16 10 110 GBT-8107 16 16 110
GBT-8094 20 12 125 GBT-8101 20 12 125 GBT-8108 20 20 125
GBT-8095 25 16 140 GBT-8102 25 16 140 GBT-8109 25 25 140

PARTING-OFF TOOL BORING TOOL INTERNAL SIDE TURNING TOOL
ISO 7 R/L DIN 4981 ISO 8 R/L DIN 4973 ISO 9 R/L DIN 4974
H B L H B L H B L
Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm) Cat No. (mm) (mm) (mm)
GBT-8110 6 6 80 GBT-8117 6 6 120 GBT-8124 6 6 120
GBT-8111 8 8 80 GBT-8118 8 8 125 GBT-8125 8 8 125
GBT-8112 10 6 90 GBT-8119 10 10 150 GBT-8126 10 10 150
GBT-8113 12 8 100 GBT-8120 12 12 180 GBT-8127 12 12 180
GBT-8114 16 10 110 GBT-8121 16 16 210 GBT-8128 16 16 210
GBT-8115 20 12 125 GBT-8122 20 20 250 GBT-8129 20 20 250
GBT-8116 25 16 140 GBT-8123 25 25 300 GBT-8130 25 25 300
