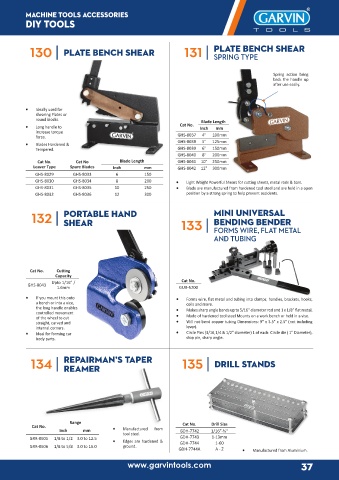

Page 39 - Garvin-Machine

machine TOOLS accessories
diy tools

130 | PLATE BENCH SHEAR 131 | PLATE BENCH SHEAR

SPRING TYPE

Spring action bring
back the handle up
after use easily.

• Ideally used for
shearing Plates or
round blocks. Blade Length
• Long handle to Cat No. Inch mm
increase torque
force. GHS-8037 4" 100mm
• Blades Hardened & GHS-8038 5" 125mm
Tempered. GHS-8039 6" 150mm
GHS-8040 8" 200mm
Cat No. Cat No Blade Length GHS-8041 10" 250mm
Leaver Type Spare Blades Inch mm GHS-8042 12" 300mm
GHS-8029 GHS-8033 6 150
GHS-8030 GHS-8034 8 200 • Light Weight Powerful Shears for cutting sheets, metal rods & bars.
GHS-8031 GHS-8035 10 250 • Blade are manufactured from hardened tool steel and are held in a open
GHS-8032 GHS-8036 12 300 position by a strong spring to help prevent accidents.

132 | PORTABLE HAND 133 | MINI UNIVERSAL
BENDING BENDER
SHEAR
FORMS WIRE, FLAT METAL
AND TUBING

Cat No. Cutting
Capacity
GHS-8043 Upto 1/16” / Cat No.
1.6mm GUB-5200
• If you mount this onto • Forms wire, flat metal and tubing into clamps, handles, brackets, hooks,
a bench or into a vice, coils and more.
the long handle enables • Makes sharp angle bends up to 5/16” diameter rod and 1 x 1/8” flat metal.
controlled movement •
of the wheel to cut Made of hardened tool steel Mounts on a work bench or held in a vise.
straight, curved and • Will not bend copper tubing Dimensions: 9” x 3.5” x 2.5” (not including
internal corners. lever).
• Ideal for forming car • Circle Pins (3/16,1/4 & 1/2” diameter) 1 of each: Circle die ( 1” Diameter),
body parts. stop pin, sharp angle.

134 | REPAIRMAN’S TAPER 135 | DRILL STANDS

REAMER

Range Cat No. Drill Size
Cat No. •
Inch mm Manufactured from GDH-7742 1/16”-½”
tool steel.
GRR-0605 1/8 to 1/2 3.0 to 12.5 • Edges are hardened & GDH-7743 1-13mm
GRR-0606 1/8 to 5/8 3.0 to 16.0 ground. GDH-7744 1-60
GDH-7744A A - Z • Manufactured from Aluminium.

www.garvintools.com 37
