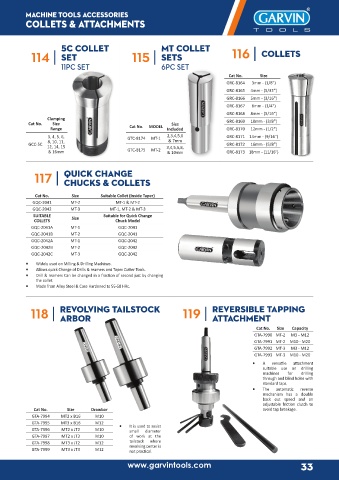

machine TOOLS accessories
collets & ATTACHMENTS

114 | 5C COLLET 115 | MT COLLET 116 | COLLETS
SETS
SET
11PC SET 6PC SET
Cat No. Size
GRC-8164 3mm - (1/8")
GRC-8165 4mm - (5/32")
GRC-8166 5mm - (3/16")
GRC-8167 6mm - (1/4")
GRC-8168 8mm - (5/16")
Clamping
Cat No. Size Size GRC-8169 10mm - (3/8")
Range Cat No. MODEL Included GRC-8170 12mm - (1/2")
3, 4, 5, 6, GTC-8174 MT-1 2,3,4,5,6 GRC-8171 14mm - (9/16")
GCC-5C 8, 10, 11, & 7mm GRC-8172 16mm - (5/8")
12, 14, 15 3,4,5,6,8,
& 16mm GTC-8175 MT-2 & 10mm GRC-8173 18mm - (11/16")

117 | QUICK CHANGE
CHUCKS & COLLETS

Cat No. Size Suitable Collet (Inside Taper)
GQC-2041 MT-2 MT-1 & MT-2
GQC-2042 MT-3 MT-1, MT-2 & MT-3
SUITABLE Suitable for Quick Change
COLLETS Size Chuck Model
GQC-2041A MT-1 GQC-2041
GQC-2041B MT-2 GQC-2041
GQC-2042A MT-1 GQC-2042
GQC-2042B MT-2 GQC-2042
GQC-2042C MT-3 GQC-2042
• Widely used on Milling & Drilling Machines.
• Allows quick Change of Drills & reamers and Taper Cutter Tools.
• Drill & reamers Can be changed in a fraction of second just by changing
the collet.
• Made from Alloy Steel & Case Hardened to 55-58 HRc.

118 | REVOLVING TAILSTOCK 119 | REVERSIBLE TAPPING
ATTACHMENT
ARBOR
Cat No. Size Capacity
GTA-7990 MT-2 M3 - M12
GTA-7991 MT-2 M10 - M20
GTA-7992 MT-3 M3 - M12
GTA-7993 MT-3 M10 - M20
• A versatile attachment
suitable use on drilling
machines for drilling
through and blind holes with
standard taps.
• The automatic reverse
mechanism has a double
back out speed and an
adjustable friction clutch to
Cat No. Size Drawbar avoid tap breakage.
GTA-7994 MT2 x B16 M10
GTA-7995 MT3 x B16 M12 • It is used to assist
GTA-7996 MT2 x JT2 M10 small diameter
GTA-7997 MT2 x JT3 M10 of work at the
GTA-7998 MT3 x JT2 M12 tailstock where
revolving center is
GTA-7999 MT3 x JT3 M12 not practical.
