machine TOOLS accessories
setup tools

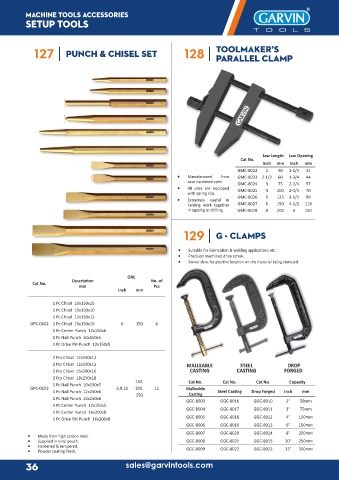

127 | PUNCH & CHISEL SET 128 | TOOLMAKER’S

PARALLEL CLAMP

Jaw Length Jaw Opening
Cat No.
Inch mm Inch mm
GMC-8022 2 50 1-1/4 31
• Manufactured from GMC-8023 2-1/2 60 1-3/4 44
case hardened steel. GMC-8024 3 75 2-1/4 57
• All sizes are equipped GMC-8025 4 100 2-3/4 70
with spring clip.
• Extremely useful in GMC-8026 5 125 3-1/2 89
holding work together GMC-8027 6 150 4-1/2 114
in tapping or drilling. GMC-8028 8 200 6 150

129 | G - CLAMPS

• Suitable for Fabrication & welding applications etc.
• Precision machined drive screw.
• Swivel shoe for positive location on the material being clamped.

OAL
Cat No. Description No. of
mm Pcs
Inch mm

1 Pc Chisel 10x150x10
1 Pc Chisel 10x150x10
1 Pc Chisel 12x150x12
GPC-0602 1 Pc Chisel 16x150x16 6 150 6
1 Pc Center Punch 12x150x6
1 Pc Nail Punch 10x150x5
1 Pc Drive Pin Punch 12x150x5

2 Pcs Chisel 12x150x12
2 Pcs Chisel 12x150x12 MALLEABLE STEEL DROP
2 Pcs Chisel 16x200x16 CASTING CASTING FORGED
2 Pcs Chisel 18x250x18 150,
1 Pc Nail Punch 10x150x5 Cat No. Cat No. Cat No. Capacity
GPC-0603 6,8,10 200, 12 Malleable
1 Pc Nail Punch 12x250x6 250 Casting Steel Casting Drop Forged Inch mm
1 Pc Nail Punch 16x250x8 GGC-8003 GGC-8016 GGC-8010 2" 50mm
1 Pc Center Punch 12x150x5 GGC-8004 GGC-8017 GGC-8011 3" 75mm
1 Pc Center Punch 16x200x8
1 Pc Drive Pin Punch 16x200x8 GGC-8005 GGC-8018 GGC-8012 4" 100mm
GGC-8006 GGC-8019 GGC-8013 6" 150mm
• Made from high carbon steel. GGC-8007 GGC-8020 GGC-8014 8" 200mm
• Supplied in vinyl pouch. GGC-8008 GGC-8021 GGC-8015 10" 250mm
• Hardened & tempered.
• Powder coating finish. GGC-8009 GGC-8022 GGC-8023 12" 300mm
