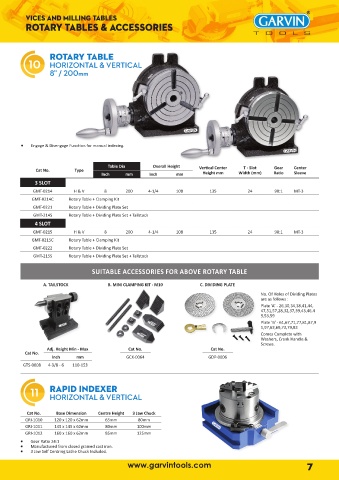

Vices and milling tABLES
Rotary tables & accessories

GRT-0003
10 ROTARY TABLE
HORIZONTAL & VERTICAL
8” / 200mm

• Engage & Disengage Function for manual indexing.

Table Dia Overall Height Vertical Center T - Slot Gear Center
Cat No. Type
Inch mm Inch mm Height mm Width (mm) Ratio Sleeve
3 SLOT
GMT-0214 H & V 8 200 4-1/4 108 135 24 90:1 MT-3
GMT-0214C Rotary Table + Clamping Kit
GMT-0221 Rotary Table + Dividing Plate Set
GMT-214S Rotary Table + Dividing Plate Set + Tailstock
4 SLOT
GMT-0215 H & V 8 200 4-1/4 108 135 24 90:1 MT-3
GMT-0215C Rotary Table + Clamping Kit
GMT-0222 Rotary Table + Dividing Plate Set
GMT-215S Rotary Table + Dividing Plate Set + Tailstock
SUITABLE ACCESSORIES FOR ABOVE ROTARY TABLE

A. TAILSTOCK B. MINI CLAMPING KIT - M10 C. DIVIDING PLATE
No. Of Holes of Dividing Plates
are as follows :
Plate ‘A’ - 26,30,34,38,41,44,
47,51,57,28,32,37,39,43,46,4
9,53,59
Plate ‘B’ - 61,67,71,77,81,87,9
1,97,63,69,73,79,83
Comes Complete with
Washers, Crank Handle &
Screws.
Adj. Height Min - Max Cat No. Cat No.
Cat No.
Inch mm GCK-0064 GDP-0006
GTS-0008 4-3/8 - 6 110-153

11 RAPID INDEXER
HORIZONTAL & VERTICAL

Cat No. Base Dimension Centre Height 3 Jaw Chuck
GRI-1010 120 x 120 x 62mm 65mm 80mm
GRI-1011 145 x 145 x 62mm 80mm 100mm
GRI-1012 160 x 160 x 62mm 85mm 125mm
• Gear Ratio 24:1
• Manufactured from closed grained cast iron.
• 3 Jaw Self Centring Lathe Chuck Included.

www.garvintools.com 7
