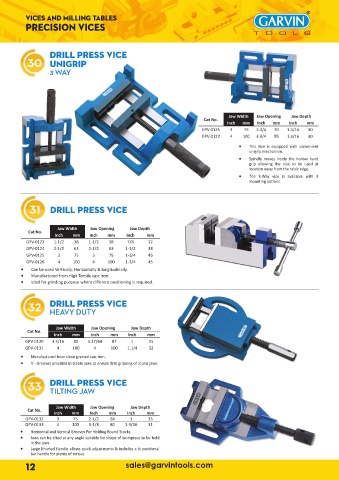

Page 14 - Garvin-Vices

Vices and milling tABLES
precision vices

DRILL PRESS VICE
30 UNIGRIP
3 WAY

Jaw Width Jaw Opening Jaw Depth
Cat No.
Inch mm Inch mm Inch mm
GPV-0125 3 75 2.3/4 70 1.3/16 30
GPV-0122 4 100 3.3/4 95 1.3/16 30
• This Vice is equipped with convenient
unigrip mechanism.
• Spindle moves inside the hollow hand
grip allowing the vice to be used at
location away from the table edge.
• The 3-Way vice is available with 3
mounting options.

31 DRILL PRESS VICE

Jaw Width Jaw Opening Jaw Depth
Cat No.
Inch mm Inch mm Inch mm
GPV-0123 1-1/2 38 1-1/2 38 7/8 22
GPV-0124 2-1/2 63 2-1/2 63 1-1/2 38
GPV-0125 3 75 3 75 1-3/4 45
GPV-0126 4 100 4 100 1-3/4 45
• Can be used Vertically, Horizontally & longitudinally.
• Manufactured from High Tensile cast Iron.
• Ideal for grinding purpose where different positioning is required.

32 DRILL PRESS VICE
HEAVY DUTY

Jaw Width Jaw Opening Jaw Depth
Cat No.
Inch mm Inch mm Inch mm
GPV-0130 3.3/16 80 3.27/64 87 1 25
GPV-0131 4 100 4 100 1.1/4 32
• Manufactured from close grained cast iron.
• V - Grooves provided in stable jaws to ensure firm gripping of round jaws.

33 DRILL PRESS VICE
TILTING JAW

Jaw Width Jaw Opening Jaw Depth
Cat No.
Inch mm Inch mm Inch mm
GPV-0132 3 75 2-1/2 64 1 35
GPV-0133 4 100 3-1/8 80 1-3/16 31
• Horizontal and Vertical Grooves For Holding Round Stocks.
• Jaws can be tilted at any angle suitable for shape of workpiece to be hold
in the jaws.
• Large Knurled Handle allows quick adjustments & includes a bi-positional
bar handle for plenty of torque.
