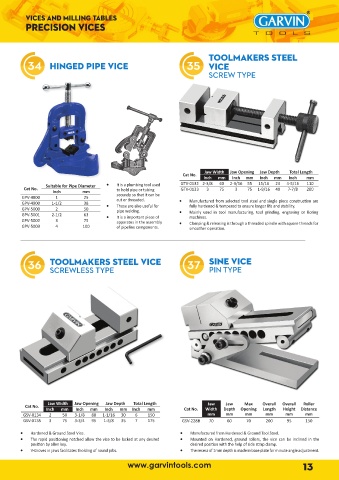

Page 15 - Garvin-Vices

Vices and milling tABLES
precision vices

GRT-0003
TOOLMAKERS STEEL
34 HINGED PIPE VICE 35 VICE

SCREW TYPE

Jaw Width Jaw Opening Jaw Depth Total Length
Cat No.
Inch mm Inch mm Inch mm Inch mm
• GTV-0132 2-3/8 60 2-3/16 55 15/16 23 4-5/16 110
Suitable for Pipe Diameter It is a plumbing tool used
Cat No. to hold pipe or tubing GTV-0133 3 75 3 75 1-9/16 40 7-7/8 200
Inch mm
GPV-4800 1 25 securely so that it can be •
cut or threaded.
GPV-4900 1-1/2 38 • These are also useful for Manufactured from selected tool steel and single piece construction are
fully hardened & tempered to ensure longer life and stability.
GPV-5000 2 50 pipe welding. •
GPV-5001 2-1/2 63 • It is a important piece of Mainly used in tool manufacturing, tool grinding, engraving or Boring
machines.
GPV-5002 3 75 apparatus in the assembly • Clamping & releasing is through a threaded spindle with square threads for
GPV-5003 4 100 of pipeline components. smoother operation.

36 TOOLMAKERS STEEL VICE 37 SINE VICE
SCREWLESS TYPE PIN TYPE

Jaw Width Jaw Opening Jaw Depth Total Length Jaw Jaw Max Overall Overall Roller
Cat No.
Inch mm Inch mm Inch mm Inch mm Cat No. Width Depth Opening Length Height Distance
GSV-0134 2 50 3-1/8 80 1-1/16 30 6 150 mm mm mm mm mm mm
GSV-0135 3 75 3-3/4 95 1-3/8 35 7 175 GSV-228B 70 60 70 200 95 150
• Hardened & Ground Steel Vice. • Manufactured from Hardened & Ground Tool Steel.
• The rapid positioning notched allow the vice to be locked at any desired • Mounted on Hardened, ground rollers, the vice can be inclined in the
position by allen key. desired position with the help of side strap clamp.
• V-Groves in jaws facilitates tholding of round jobs. • The recess of 1mm depth is made in base plate for minute angle adjustment.
