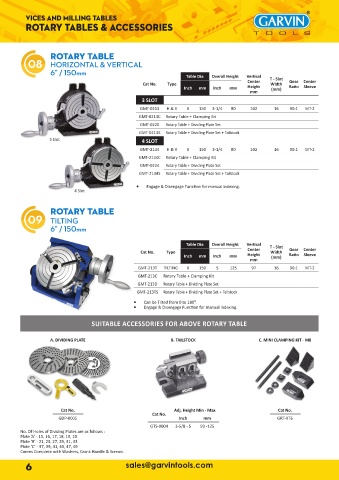

Page 8 - Garvin-Vices

Vices and milling tABLES
Rotary tables & accessories

08 ROTARY TABLE
HORIZONTAL & VERTICAL
6” / 150mm
Table Dia Overall Height Vertical T - Slot
Center Gear Center
Cat No. Type Width
Inch mm Inch mm Height (mm) Ratio Sleeve
mm
3 SLOT
GMT-0213 H & V 6 150 3-1/4 80 102 16 90:1 MT-2
GMT-0213C Rotary Table + Clamping Kit
GMT-0220 Rotary Table + Dividing Plate Set
GMT-0213S Rotary Table + Dividing Plate Set + Tailstock
3 Slot 4 SLOT
GMT-2134 H & V 6 150 3-1/4 80 102 16 90:1 MT-2
GMT-2134C Rotary Table + Clamping Kit
GMT-0224 Rotary Table + Dividing Plate Set
GMT-2134S Rotary Table + Dividing Plate Set + Tailstock

• Engage & Disengage Function for manual indexing.
4 Slot

ROTARY TABLE
09 TILTING
6” / 150mm

Table Dia Overall Height Vertical
Center T - Slot Gear Center
Cat No. Type Width
Inch mm Inch mm Height (mm) Ratio Sleeve
mm
GMT-213T TILTING 6 150 5 125 97 16 90:1 MT-2
GMT-213C Rotary Table + Clamping Kit
GMT-213D Rotary Table + Dividing Plate Set
GMT-213TS Rotary Table + Dividing Plate Set + Tailstock
• Can be Tilted from 0 to 180⁰.
• Engage & Disengage Function for manual indexing.

SUITABLE ACCESSORIES FOR ABOVE ROTARY TABLE

A. DIVIDING PLATE B. TAILSTOCK C. MINI CLAMPING KIT - M8

Cat No. Adj. Height Min - Max Cat No.
Cat No.
GDP-0005 Inch mm GRT-RT6
GTS-0004 3-5/8 - 5 93 -125
No. Of Holes of Dividing Plates are as follows :
Plate ‘A’ - 15, 16, 17, 18, 19, 20
Plate ‘B’ - 21, 23, 27, 29, 31, 33
Plate ‘C’ - 37, 39, 41, 43, 47, 49
Comes Complete with Washers, Crank Handle & Screws.
