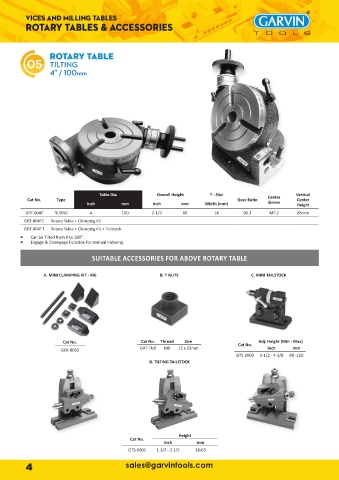

ROTARY TABLE
05 TILTING
4” / 100mm
Table Dia Overall Height T - Slot Vertical
Cat No. Type Gear Ratio Center Center
Inch mm Inch mm Width (mm) Sleeve Height
GRT-004T TILTING 4 100 2-1/2 66 14 90:1 MT-2 85mm
GRT-004TC Rotary Table + Clamping Kit
GRT-004TT Rotary Table + Clamping Kit + Tailstock
• Can be Tilted from 0 to 180⁰.
• Engage & Disengage Function for manual indexing.
SUITABLE ACCESSORIES FOR ABOVE ROTARY TABLE
A. MINI CLAMPING KIT - M6 B. T NUTS C. MINI TAILSTOCK
Cat No. Cat No. Thread Size Cat No. Adj. Height (Min - Max)
GCK-0062 GRT-TN6 M6 12 x 12mm Inch mm
GTS-0003 3-1/2 - 4-3/8 89 -110
D. TILTING TAILSTOCK
Height
Cat No.
Inch mm
GTS-0002 1.1/2 - 2.1/2 38-63
