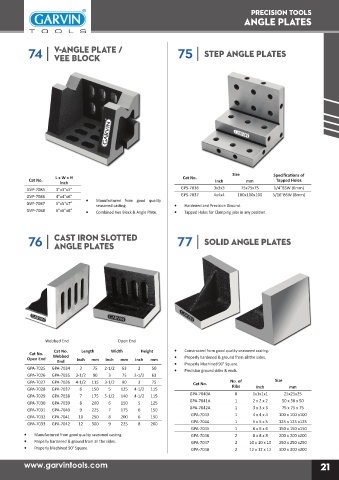

Page 23 - Garvin-Precision

precision TOOLS
Angle plates

74 | V-ANGLE PLATE / 75 | STEP ANGLE PLATES

VEE BLOCK

Size Specifications of
Cat No. L x W x H Cat No. Inch mm Tapped Holes
Inch
GVP-7085 3”x3”x5” GPS-7036 3x3x3 75x75x75 1/4"BSW (6mm)
GVP-7086 4”x4”x6” • GPS-7037 4x4x4 100x100x100 5/16"BSW (8mm)
GVP-7087 5”x5”x7” Manufactured from good quality • Hardened and Precision Ground.
seasoned casting.
GVP-7088 6”x6”x8” • Combined Vee Block & Angle Plate. • Tapped Holes for Clamping jobs in any position.

76 | CAST IRON SLOTTED 77 | SOLID ANGLE PLATES
ANGLE PLATES

Webbed End Open End

Cat No. Cat No. Length Width Height • Constructed from good quality seasoned casting.
Open End Webbed Inch mm Inch mm Inch mm • Properly hardened & ground from all the sides.
End
•
GPA-7025 GPA-7034 3 75 2-1/2 63 2 50 • Properly Machined 90° Square.
Precision ground sides & ends.
GPA-7026 GPA-7035 3-1/2 90 3 75 2-1/2 63
GPA-7027 GPA-7036 4-1/2 115 3-1/2 90 3 75 Cat No. No. of Size
GPA-7028 GPA-7037 6 150 5 125 4-1/2 115 Ribs Inch mm
GPA-7029 GPA-7038 7 175 5-1/2 140 4-1/2 115 GPA-7040A 0 1x1x1x1 25x25x25
GPA-7030 GPA-7039 8 200 6 150 5 125 GPA-7041A 1 2 x 2 x 2 50 x 50 x 50
GPA-7031 GPA-7040 9 225 7 175 6 150 GPA-7042A 1 3 x 3 x 3 75 x 75 x 75
GPA-7032 GPA-7041 10 250 8 200 6 150 GPA-7043 1 4 x 4 x 4 100 x 100 x100
GPA-7033 GPA-7042 12 300 9 225 8 200 GPA-7044 1 5 x 5 x 5 125 x 125 x125
GPA-7045 1 6 x 6 x 6 150 x 150 x150
• Manufactured from good quality seasoned casting. GPA-7046 2 8 x 8 x 8 200 x 200 x200
• Properly hardened & ground from all the sides. GPA-7047 2 10 x 10 x 10 250 x 250 x250
• Properly Machined 90° Square. GPA-7048 2 12 x 12 x 12 300 x 300 x300

www.garvintools.com 21
