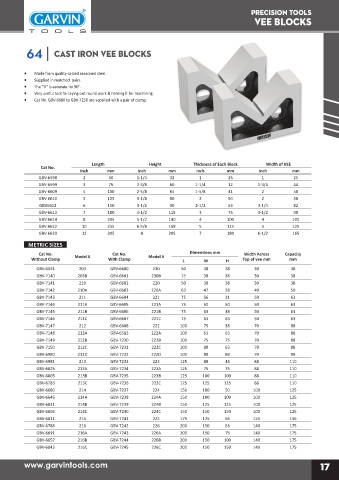

precision TOOLS
VEE Blocks

64 | CAST IRON VEE BLOCKS

• Made from quality casted seasoned steel.
• Supplied in matched pairs.
• The “V” is accurate to 90°.
• Very useful tool for laying out round work & holding it for machining.
• Cat No. GBV-6600 to GBV-7250 are supplied with a pair of clamp.

Length Height Thickness of Each Block Width of VEE
Cat No.
Inch mm Inch mm Inch mm Inch mm
GBV-6598 2 50 1-1/4 32 1 25 1 25
GBV-6599 3 75 2-3/8 60 1-1/4 32 1-3/4 44
GBV-6609 4 100 2-5/8 65 1-5/8 41 2 50
GBV-6610 5 125 3-1/8 80 2 50 2 50
GBV6612 6 150 3-1/2 90 2-1/2 63 3-1/4 82
GBV-6613 7 180 4-1/2 115 3 75 3-1/2 90
GBV-6614 8 205 5-1/2 140 4 100 4 100
GBV-6622 10 255 6-5/8 168 5 125 5 125
GBV-6623 12 305 8 205 7 180 6-1/2 165

METRIC SIZES
Cat No. Model # Cat No. Model # Dimensions mm Width Across Capacity
Without Clamp With Clamp L W H Top of vee mm mm
GBV-6561 203 GBV-6600 230 50 38 38 30 38
GBV-7140 203B GBV-6601 230B 75 38 38 30 38
GBV-7141 210 GBV-6602 220 50 38 38 30 38
GBV-7142 210A GBV-6603 220A 63 47 28 40 50
GBV-7143 211 GBV-6604 221 75 56 31 50 63
GBV-7144 211A GBV-6605 221A 75 50 50 50 63
GBV-7145 211B GBV-6606 221B 75 63 38 50 63
GBV-7146 211C GBV-6607 221C 75 63 63 50 63
GBV-7147 212 GBV-6608 222 100 75 38 70 88
GBV-7148 212A GBV-6583 222A 100 63 63 70 88
GBV-7149 212B GBV-7230 222B 100 75 75 70 88
GBV-7150 212C GBV-7231 222C 100 88 63 70 88
GBV-6980 212D GBV-7232 222D 100 88 88 70 88
GBV-6981 213 GBV-7233 223 125 88 44 88 110
GBV-6825 213A GBV-7234 223A 125 75 75 88 110
GBV-6805 213B GBV-7235 223B 125 100 100 88 110
GBV-6783 213C GBV-7236 223C 125 125 125 88 110
GBV-6680 214 GBV-7237 224 150 100 50 100 125
GBV-6645 214A GBV-7238 224A 150 100 100 100 125
GBV-6831 214B GBV-7239 224B 150 125 125 100 125
GBV-6866 214C GBV-7240 224C 150 150 150 100 125
GBV-6811 215 GBV-7241 225 175 125 56 125 156
GBV-6788 216 GBV-7242 226 200 150 63 140 175
GBV-6691 216A GBV-7243 226A 200 150 75 140 175
GBV-6657 216B GBV-7244 226B 200 150 100 140 175
GBV-6843 216C GBV-7245 226C 200 150 150 140 175
