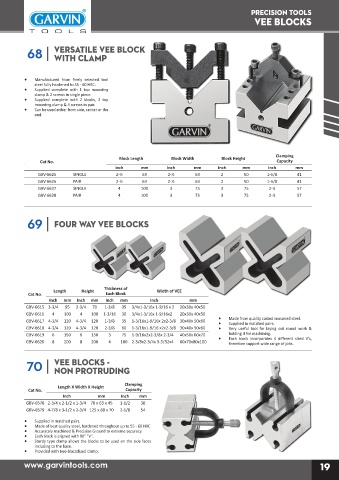

precision TOOLS
Vee Blocks

68 | VERSATILE VEE BLOCK

WITH CLAMP

• Manufactured from finely selected tool
steel fully hardened to 55 - 60 HRC.
• Supplied complete with 1 top mounting
• clamp & 2 screws in single piece.
Supplied complete with 2 blocks, 2 top
mounting clamp & 4 screws in pair.
• Can be used either from side, center or the
end.

Clamping
Block Length Block Width Block Height
Cat No. Capacity
Inch mm Inch mm Inch mm Inch mm
GBV-6625 SINGLE 2-½ 63 2-½ 63 2 50 1-5/8 41
GBV-6626 PAIR 2-½ 63 2-½ 63 2 50 1-5/8 41
GBV-6627 SINGLE 4 100 3 75 3 75 2-¼ 57
GBV-6628 PAIR 4 100 3 75 3 75 2-¼ 57

69 | FOUR WAY VEE BLOCKS

Thickness of
Length Height Width of VEE
Cat No. Each Block
Inch mm Inch mm Inch mm Inch mm
GBV-6615 3-3/4 95 2-3/4 70 1-3/8 35 3/4x1-3/16x 1-9/16 x 2 20x30x 40x50
GBV-6616 4 100 4 100 1-3/16 30 3/4x1-3/16x 1-9/16x2 20x30x 40x50 •
GBV-6617 4-3/4 120 4-3/4 120 1-3/8 35 1-3/16x1-9/16x 2x2-3/8 30x40x 50x60 • Made from quality casted seasoned steel.
Supplied in matched pairs.
GBV-6618 4-3/4 120 4-3/4 120 2-3/8 60 1-3/16x1-9/16 x2x2-3/8 30x40x 50x60 • Very useful tool for laying out round work &
GBV-6619 6 150 6 150 3 75 1-9/16x2x2-3/8x 2-3/4 40x50x 60x70 • holding it for machining.
GBV-6620 8 200 8 200 4 100 2-3/8x2-3/4x 3-5/32x4 60x70x80x100 Each block incorporates 4 different sized V’s,
therefore support wide range of jobs.

70 | VEE BLOCKS -
NON PROTRUDING

Clamping
Length X Width X Height
Cat No. Capacity
Inch mm Inch mm
GBV-6578 2-3/4 x 2-1/2 x 1-3/4 70 x 63 x 45 1-1/2 38
GBV-6579 4-7/8 x 3-1/2 x 2-3/4 125 x 88 x 70 2-1/8 54
• Supplied in matched pairs.
• Made of best quality steel, hardened throughout up to 55 - 60 HRC
• Accurately machined & Precision Ground to extreme accuracy.
• Each block is aligned with 90° “V”.
• Sturdy type clamp allows the blocks to be used on the side faces
including to the base.
• Provided with two-blacodized clamp.
