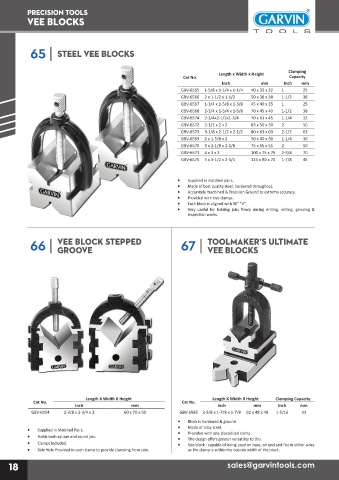

Page 20 - Garvin-Precision

precision TOOLS
Vee Blocks

65 | STEEL VEE BLOCKS

Length x Width x Height Clamping
Cat No. Capacity
Inch mm Inch mm
GBV-6565 1-5/8 x 1-1/4 x 1-1/4 40 x 32 x 32 1 25
GBV-6566 2 x 1-1/2 x 1-1/2 50 x 38 x 38 1-1/2 38
GBV-6567 1-3/4 x 1-5/8 x 1-3/8 45 x 40 x 35 1 25
GBV-6568 2-3/4 x 1-3/4 x 1-5/8 70 x 45 x 40 1-1/2 38
GBV-6574 2-3/4x2-1/2x1-3/4 70 x 63 x 45 1-1/4 32
GBV-6572 2-1/2 x 2 x 2 63 x 50 x 50 2 50
GBV-6573 3-1/8 x 2-1/2 x 2-1/2 80 x 63 x 63 2-1/2 63
GBV-6569 2 x 1-5/8 x 2 50 x 40 x 50 1-1/4 30
GBV-6570 3 x 2-1/8 x 2-1/8 75 x 55 x 55 2 50
GBV-6571 4 x 3 x 3 100 x 75 x 75 2-3/4 70
GBV-6575 5 x 3-1/2 x 2-3/4 125 x 90 x 70 1-7/8 45

• Supplied in matched pairs.
• Made of best quality steel, hardened throughout.
• Accurately machined & Precision Ground to extreme accuracy.
• Provided with two clamps.
• Each block is aligned with 90° “V”.
• Very useful for holding jobs firmly during drilling, milling, grinding &
inspection works.

66 | VEE BLOCK STEPPED 67 | TOOLMAKER’S ULTIMATE
GROOVE
VEE BLOCKS

Length X Width X Height Length X Width X Height Clamping Capacity
Cat No. Cat No.
Inch mm Inch mm Inch mm
GBV-6954 2-3/8 x 2-3/4 x 2 60 x 70 x 50 GBV-6585 3-5/8 x 1-7/8 x 1-7/8 92 x 48 x 48 1-5/16 33
• Block is hardened & ground.
• Supplied in Matched Pairs. • Made of alloy steel.
•
• Holds both square and round job. • Provided with one blacodized clamp.
The design offers greater versatility to this.
• Clamps Included. • Vee block : capable of being used on base, on end and flat in either sides
• Side Hole Provided in each clamp to provide clamping from side. as the clamp is within the outside width of the block.
