precision TOOLS
Setup tools

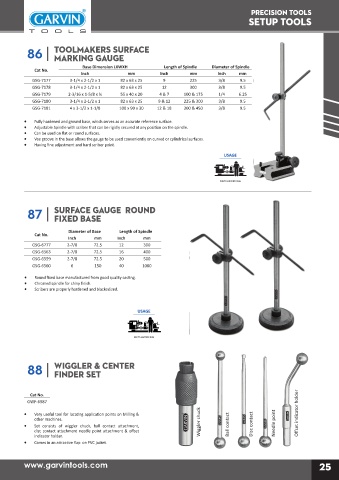

86 | TOOLMAKERS SURFACE

MARKING GAUGE
Base Dimension LXWXH Length of Spindle Diameter of Spindle
Cat No.
Inch mm Inch mm Inch mm
GSG-7177 3-1/4 x 2-1/2 x 1 82 x 63 x 25 9 225 3/8 9.5
GSG-7178 3-1/4 x 2-1/2 x 1 82 x 63 x 25 12 300 3/8 9.5
GSG-7179 2-3/16 x 1-5/8 x ¾ 55 x 40 x 20 4 & 7 100 & 175 1/4 6.25
GSG-7180 3-1/4 x 2-1/2 x 1 82 x 63 x 25 9 & 12 225 & 300 3/8 9.5
GSG-7181 4 x 3-1/2 x 1-1/8 100 x 90 x 30 12 & 18 300 & 450 3/8 9.5

• Fully hardened and ground base, which serves as an accurate reference surface.
• Adjustable Spindle with scriber that can be rigidly secured at any position on the spindle.
• Can be used on flat or round surfaces.
• Vee groove in the base allows the gauge to be used conveniently on curved or cylindrical surfaces.
• Having fine adjustment and hard scriber point.
USAGE

METALWORKING

87 | SURFACE GAUGE ROUND
FIXED BASE

Diameter of Base Length of Spindle
Cat No.
Inch mm Inch mm
GSG-6777 2-7/8 72.5 12 300
GSG-6563 2-7/8 72.5 16 400
GSG-6559 2-7/8 72.5 20 500
GSG-6560 6 150 40 1000
• Round fixed base manufactured from good quality casting.
• Chromed spindle for shiny finish.
• Scribers are properly hardened and blackodized.

USAGE

METALWORKING

88 | WIGGLER & CENTER
FINDER SET

Cat No.
GWF-6987

• Very useful tool for locating application points on Milling & Offset indicator holder
other machines.
• Set consists of wiggler chuck, ball contact attachment, Wiggler chuck Ball contact Disc contact Needle point
disc contact attachment needle point attachment & offset
indicator holder.
• Comes in an attractive flap on PVC jacket.
