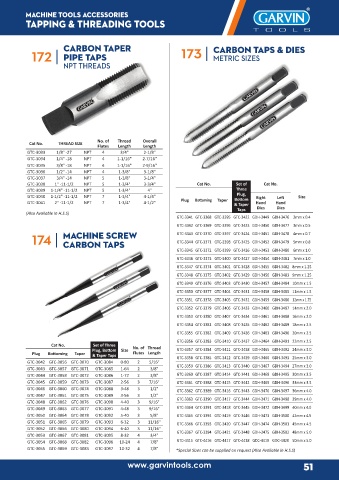

Page 53 - Garvin-Machine

machine TOOLS accessories
tAPPING & THREADING TOOLS

172 | CARBON TAPER 173 | CARBON TAPS & DIES
PIPE TAPS
METRIC SIZES
NPT THREADS

No. of Thread Overall
Cat No. THREAD SIZE
Flutes Length Length
GTC-3033 1/8" -27 NPT 4 3/4" 2-1/8"
GTC-3034 1/4" -18 NPT 4 1-1/16" 2-7/16"
GTC-3035 3/8" -18 NPT 4 1-1/16" 2-9/16"
GTC-3036 1/2" -14 NPT 4 1-3/8" 3-1/8"
GTC-3037 3/4" -14 NPT 5 1-3/8" 3-1/4"
GTC-3038 1" -11-1/2 NPT 5 1-3/4" 3-3/4" Cat No. Set of Cat No.
GTC-3039 1-1/4" -11-1/2 NPT 5 1-3/4" 4" Three
Plug,
GTC-3040 1-1/2" -11-1/2 NPT 7 1-3/4" 4-1/4" Bottom Right Left Size
GTC-3041 2" -11-1/2 NPT 7 1-3/4" 4-1/2" Plug Bottoming Taper & Taper Hand Hand
Taps Dies Dies
(Also Available in H.S.S)
GTC-3341 GTC-3368 GTC-3395 GTC-3422 GDH-3449 GDH-3476 2mm x 0.4
GTC-3342 GTC-3369 GTC-3396 GTC-3423 GDH-3450 GDH-3477 3mm x 0.5
174 | MACHINE SCREW GTC-3343 GTC-3370 GTC-3397 GTC-3424 GDH-3451 GDH-3478 4mm x 0.7
GTC-3344 GTC-3371 GTC-3398 GTC-3425 GDH-3452 GDH-3479 5mm x 0.8
CARBON TAPS
GTC-3345 GTC-3372 GTC-3399 GTC-3426 GDH-3453 GDH-3480 6mm x 1.0
GTC-3346 GTC-3373 GTC-3400 GTC-3427 GDH-3454 GDH-3481 7mm x 1.0
GTC-3347 GTC-3374 GTC-3401 GTC-3428 GDH-3455 GDH-3482 8mm x 1.25
GTC-3348 GTC-3375 GTC-3402 GTC-3429 GDH-3456 GDH-3483 9mm x 1.25
GTC-3349 GTC-3376 GTC-3403 GTC-3430 GDH-3457 GDH-3484 10mm x 1.5
GTC-3350 GTC-3377 GTC-3404 GTC-3431 GDH-3458 GDH-3485 11mm x 1.5
GTC-3351 GTC-3378 GTC-3405 GTC-3432 GDH-3459 GDH-3486 12mm x 1.75
GTC-3352 GTC-3379 GTC-3406 GTC-3433 GDH-3460 GDH-3487 14mm x 2.0
GTC-3353 GTC-3380 GTC-3407 GTC-3434 GDH-3461 GDH-3488 16mm x 2.0
GTC-3354 GTC-3381 GTC-3408 GTC-3435 GDH-3462 GDH-3489 18mm x 2.5
GTC-3355 GTC-3382 GTC-3409 GTC-3436 GDH-3463 GDH-3490 20mm x 2.5
GTC-3356 GTC-3383 GTC-3410 GTC-3437 GDH-3464 GDH-3491 22mm x 2.5
Cat No. Set of Three
Plug, Bottom Size No. of Thread GTC-3357 GTC-3384 GTC-3411 GTC-3438 GDH-3465 GDH-3492 24mm x 3.0
Plug Bottoming Taper & Taper Taps Flutes Length
GTC-3042 GTC-3056 GTC-3070 GTC-3084 0-80 2 5/16" GTC-3358 GTC-3385 GTC-3412 GTC-3439 GDH-3466 GDH-3493 25mm x 3.0
GTC-3043 GTC-3057 GTC-3071 GTC-3085 1-64 2 3/8" GTC-3359 GTC-3386 GTC-3413 GTC-3440 GDH-3467 GDH-3494 27mm x 3.0
GTC-3044 GTC-3058 GTC-3072 GTC-3086 1-72 2 3/8" GTC-3360 GTC-3387 GTC-3414 GTC-3441 GDH-3468 GDH-3495 30mm x 3.5
GTC-3045 GTC-3059 GTC-3073 GTC-3087 2-56 3 7/16" GTC-3361 GTC-3388 GTC-3415 GTC-3442 GDH-3469 GDH-3496 33mm x 3.5
GTC-3046 GTC-3060 GTC-3074 GTC-3088 3-48 3 1/2" GTC-3362 GTC-3389 GTC-3416 GTC-3443 GDH-3470 GDH-3497 36mm x 4.0
GTC-3047 GTC-3061 GTC-3075 GTC-3089 3-56 3 1/2"
GTC-3048 GTC-3062 GTC-3076 GTC-3090 4-40 3 9/16" GTC-3363 GTC-3390 GTC-3417 GTC-3444 GDH-3471 GDH-3498 39mm x 4.0
GTC-3049 GTC-3063 GTC-3077 GTC-3091 4-48 3 9/16" GTC-3364 GTC-3391 GTC-3418 GTC-3445 GDH-3472 GDH-3499 40mm x 4.0
GTC-3050 GTC-3064 GTC-3078 GTC-3092 5-40 3 5/8" GTC-3365 GTC-3392 GTC-3419 GTC-3446 GDH-3473 GDH-3500 42mm x 4.5
GTC-3051 GTC-3065 GTC-3079 GTC-3093 6-32 3 11/16" GTC-3366 GTC-3393 GTC-3420 GTC-3447 GDH-3474 GDH-3501 45mm x 4.5
GTC-3052 GTC-3066 GTC-3080 GTC-3094 6-40 3 11/16" GTC-3367 GTC-3394 GTC-3421 GTC-3448 GDH-3475 GDH-3502 48mm x 5.0
GTC-3053 GTC-3067 GTC-3081 GTC-3095 8-32 4 3/4"
GTC-3054 GTC-3068 GTC-3082 GTC-3096 10-24 4 7/8" GTC-4415 GTC-4416 GTC-4417 GTC-4418 GDC-4419 GDC-4420 50mm x 5.0
GTC-3055 GTC-3069 GTC-3083 GTC-3097 10-32 4 7/8" *Special Sizes can be supplied on request (Also Available in H.S.S)
