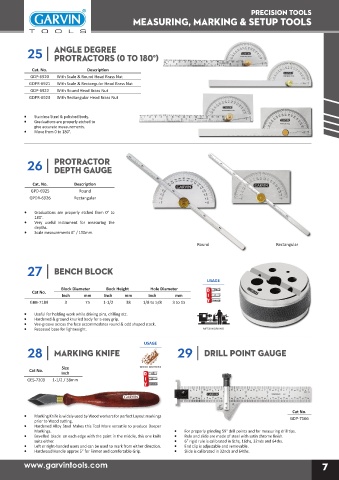

Page 9 - Garvin-Precision

precision TOOLS
Measuring, Marking & Setup Tools

25 | ANGLE DEGREE

PROTRACTORS (0 TO 180°)

Cat. No. Description
GDP-6920 With Scale & Round Head Brass Nut
GDPR-6921 With Scale & Rectangular Head Brass Nut
GDP-6922 With Round Head Brass Nut
GDPR-6923 With Rectangular Head Brass Nut

• Stainless Steel & polished body.
• Graduations are properly etched to
give accurate measurements.
• Move from 0 to 180°.

26 | PROTRACTOR
DEPTH GAUGE

Cat. No. Description
GPD-6925 Round
GPDR-6926 Rectangular
• Graduations are properly etched from 0° to
180°.
• Very useful instrument for measuring the
• depths.
Scale measurements 6” / 150mm.
Round Rectangular

27 | BENCH BLOCK

USAGE
Block Diameter Bock Height Hole Diameter
Cat No.
Inch mm Inch mm Inch mm
GBB-7189 3 75 1-1/2 38 1/8 to 5/8 3 to 15
• Useful for holding work while driving pins, drilling etc.
• Hardened & ground knurled body for a easy grip.
• Vee-groove across the face accommodates round & odd shaped stock.
• Recessed base for lightweight. METALWORKING

28 | MARKING KNIFE USAGE 29 | DRILL POINT GAUGE

Size WOOD WORKING
Cat No.
Inch
GES-7209 1-1/2 / 38mm

• Marking Knife is widely used by Wood workers for perfect Layout markings Cat No.
prior to Wood cutting. GDP-7166
• Hardened Alloy Steel Makes this Tool More versatile to produce Deeper
• Markings. • For properly grinding 59° drill points and for measuring drill tips.
•
Rule and slide are made of steel with satin chrome finish.
Bevelled blade on each edge with the point in the middle, this one knife
suits either. • 6” rigid rule is calibrated in 8ths, 16ths, 32nds and 64ths.
• Left or right-handed users and can be used to mark from either direction. • End clip is adjustable and removable.
• Hardwood Handle approx 5” for Firmer and comfortable Grip. • Slide is calibrated in 32nds and 64ths.
www.garvintools.com 7
