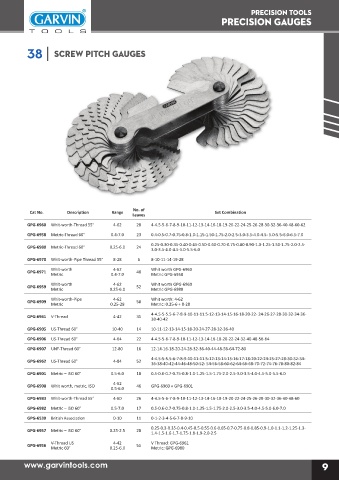

38 | SCREW PITCH GAUGES

No. of
Cat No. Description Range Leaves Set Combination
GPG-6960 Whit-worth-Thread 55° 4-62 28 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-19-20-22-24-25-26-28-30-32-36-40-48-60-62

GPG-6958 Metric-Thread 60° 0.4-7.0 23 0.4-0.5-0.7-0.75-0.8-1.0-1.15-1.50-1.75-2.0-2.5-3.0-3.5-4.0-4.5- 5.0-5.5-6.0-6.5-7.0
0.25-0.30-0.35-0.40-0.45-0.50-0.60-0.70-0.75-0.80-0.90-1.0-1.25-1.50-1.75-2.0-2.5-
GPG-6980 Metric-Thread 60° 0.25-6.0 24 3.0-3.5-4.0-4.5-5.0-5.5-6.0
GPG-6970 Whit-worth-Pipe Thread 55° 8-28 6 8-10-11-14-19-28

GPG-6971 Whit-worth 4-62 48 Whit worth GPG-6960
Metric 0.4-7.0 Metric GPG-6958
GPG-6959 Whit-worth 4-62 52 Whit worth GPG-6960
Metric 0.25-6.0 Metric GPG-6980
4-62
GPG-6909 Whit-worth-Pipe 0.25-28 58 Whit worth: 4-62
Metric: 0.25-6 + 8-28
Metric
GPG-6961 V-Thread 4-42 31 4-4.5-5-5.5-6-7-8-9-10-11-11.5-12-13-14-15-16-18-20-22- 24-26-27-28-30-32-34-36-
38-40-42
GPG-6905 US-Thread 60° 10-40 14 10-11-12-13-14-15-18-20-24-27-28-32-36-40

GPG-6906 US-Thread 60° 4-64 22 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-20-22-24-32-40-48-56-64
GPG-6907 UNF-Thread 60° 12-80 16 12-14-16-18-20-24-28-32-36-40-44-48-56-64-72-80
4-4.5-5-5.5-6-7-8-9-10-11-11.5-12-13-14-15-16-17-18-20-22-24-25-27-28-30-32-34-
GPG-6962 US-Thread 60° 4-84 52 36-38-40-42-44-46-48-50-52- 54-56-58-60-62-64-66-68-70-72-74-76-78-80-82-84
GPG-6901 Metric – ISO 60° 0.5-6.0 18 0.5-0.6-0.7-0.75-0.8-1.0-1.25-1.5-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-5.5-6.0

GPG-6908 Whit worth, metric, ISO 4-62 46 GPG-6960 + GPG-6901
0.5-6.0
GPG-6983 Whit-worth-Thread 55° 4-60 26 4-4.5-5-6-7-8-9-10-11-12-13-14-16-18-19-20-22-24-25-26-28-30-32-36-40-48-60
GPG-6982 Metric – ISO 60° 0.5-7.0 17 0.5-0.6-0.7-0.75-0.8-1.0-1.25-1.5-1.75-2.0-2.5-3.0-3.5-4.0-4.5-5.0-6.0-7.0
GPG-6530 British Association 0-10 11 0-1-2-3-4-5-6-7-8-9-10

GPG-6957 Metric – ISO 60° 0.25-2.5 28 0.25-0.3-0.35-0.4-0.45-0.5-0.55-0.6-0.65-0.7-0.75-0.8-0.85-0.9-1.0-1.1-1.2-1.25-1.3-
1.4-1.5-1.6-1.7-1.75-1.8-1.9-2.0-2.5
4-42
GPG-6956 V-Thread US 0.25-6.0 55 V Thread: GPG-6961
Metric: GPG-6980
Metric 60°
