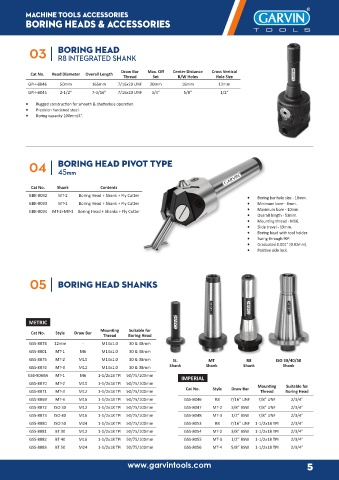

machine TOOLS accessories
BORING HEADS & ACCESSORIES

03 | BORING HEAD

R8 INTEGRATED SHANK

Cat No. Head Diameter Overall Length Draw Bar Max. Off Center Distance Cross Vertical
Hole Size
B/W Holes
Set
Thread
GPH-8046 50mm 165mm 7/16x20 UNF 20mm 16mm 12mm
GPH-8045 2-1/2” 7-3/16” 7/16x20 UNF 3/4" 5/8” 1/2"
• Rugged construction for smooth & chatterless operation.
• Precision hardened steel.
• Boring capacity 100mm/4”.

04 | BORING HEAD PIVOT TYPE

45mm

Cat No. Shank Contents
GBK-0092 MT-2 Boring Head + Shank + Fly Cutter • Boring bar hole size - 10mm.
GBK-0093 MT-3 Boring Head + Shank + Fly Cutter • Minimum bore - 8mm.
GBK-0094 MT-2+MT-3 Boring Head + Shanks + Fly Cutter • Maximum bore - 10mm.
• Overall length - 53mm.
• Mounting thread - M16.
• Slide travel - 19mm.
• Boring head with tool holder.
• Swing through 90o.
• Graduated 0.001” (0.02mm).
• Positive side lock.

05 | BORING HEAD SHANKS

METRIC
Cat No. Style Draw Bar Mounting Suitable for
Thread Boring Head
GSS-8074 12mm - M14x1.0 30 & 38mm
GSS-8001 MT-1 M6 M14x1.0 30 & 38mm
GSS-8075 MT-2 M10 M14x1.0 30 & 38mm St. MT R8 ISO 30/40/50
GSS-8076 MT-3 M12 M14x1.0 30 & 38mm Shank Shank Shank Shank
GSS-8069A MT-1 M6 1-1/2x18 TPI 50/75/100mm IMPERIAL
GSS-8070 MT-2 M10 1-1/2x18 TPI 50/75/100mm
Cat No. Style Draw Bar Mounting Suitable for
GSS-8071 MT-3 M12 1-1/2x18 TPI 50/75/100mm Thread Boring Head
GSS-8069 MT-4 M16 1-1/2x18 TPI 50/75/100mm GSS-8046 R8 7/16” UNF 7/8” UNF 2/3/4”
GSS-8072 ISO 30 M12 1-1/2x18 TPI 50/75/100mm GSS-8047 MT-2 3/8” BSW 7/8” UNF 2/3/4”
GSS-8073 ISO 40 M16 1-1/2x18 TPI 50/75/100mm GSS-8048 MT-3 1/2” BSW 7/8” UNF 2/3/4”
GSS-8080 ISO 50 M24 1-1/2x18 TPI 50/75/100mm GSS-8053 R8 7/16” UNF 1-1/2x18 TPI 2/3/4”
GSS-8081 BT 30 M12 1-1/2x18 TPI 50/75/100mm GSS-8054 MT-2 3/8” BSW 1-1/2x18 TPI 2/3/4”
GSS-8082 BT 40 M16 1-1/2x18 TPI 50/75/100mm GSS-8055 MT-3 1/2” BSW 1-1/2x18 TPI 2/3/4”
GSS-8083 BT 50 M24 1-1/2x18 TPI 50/75/100mm GSS-8056 MT-4 5/8” BSW 1-1/2x18 TPI 2/3/4”
