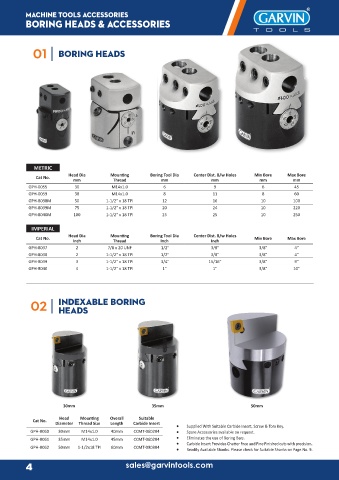

machine TOOLS accessories
BORING HEADS & ACCESSORIES

01 | BORING HEADS

METRIC
Cat No. Head Dia Mounting Boring Tool Dia Center Dist. B/w Holes Min Bore Max Bore
mm
mm
mm
Thread
mm
mm
GPH-0055 30 M14x1.0 6 9 6 45
GPH-0059 38 M14x1.0 8 11 8 60
GPH-8038M 50 1-1/2" x 18 TPI 12 16 10 100
GPH-8039M 75 1-1/2" x 18 TPI 20 24 10 220
GPH-8040M 100 1-1/2" x 18 TPI 25 25 10 250
IMPERIAL
Cat No. Head Dia Mounting Boring Tool Dia Center Dist. B/w Holes Min Bore Max Bore
Inch Thread Inch Inch
GPH-8037 2 7/8 x 20 UNF 1/2" 3/8” 3/8” 4”
GPH-8038 2 1-1/2" x 18 TPI 1/2" 3/8” 3/8” 4”
GPH-8039 3 1-1/2" x 18 TPI 3/4" 15/16” 3/8” 9”
GPH-8040 4 1-1/2" x 18 TPI 1" 1” 3/8” 10”

02 | INDEXABLE BORING
HEADS

30mm 35mm 50mm

Cat No. Head Mounting Overall Suitable
Diameter Thread Size Length Carbide Insert • Supplied With Suitable Carbide Insert, Screw & Torx Key.
GPH-0060 30mm M14x1.0 40mm CCMT-060204 • Spare Accessories available on request.
GPH-0061 35mm M14x1.0 45mm CCMT-060204 • Eliminates the use of Boring Bars.
•
Carbide Insert Provides Chatter Free and Fine Finished cuts with precision.
GPH-0062 50mm 1-1/2x18 TPI 60mm CCMT-090304 • Readily Available Shanks. Please check for Suitable Shanks on Page No. 9.
